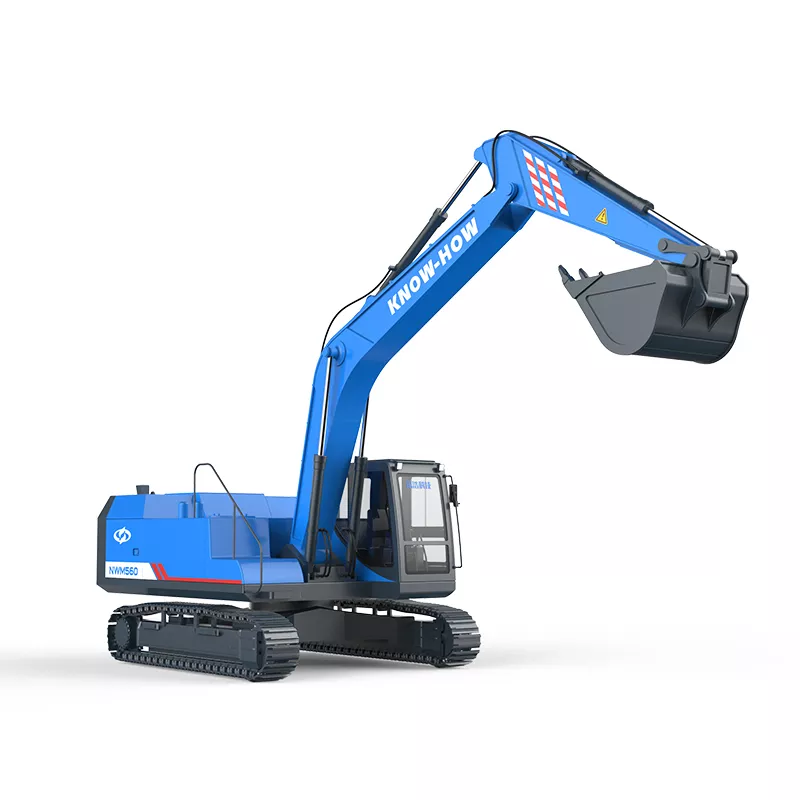

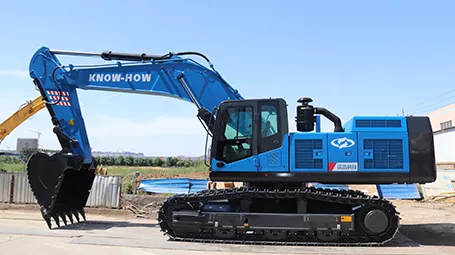

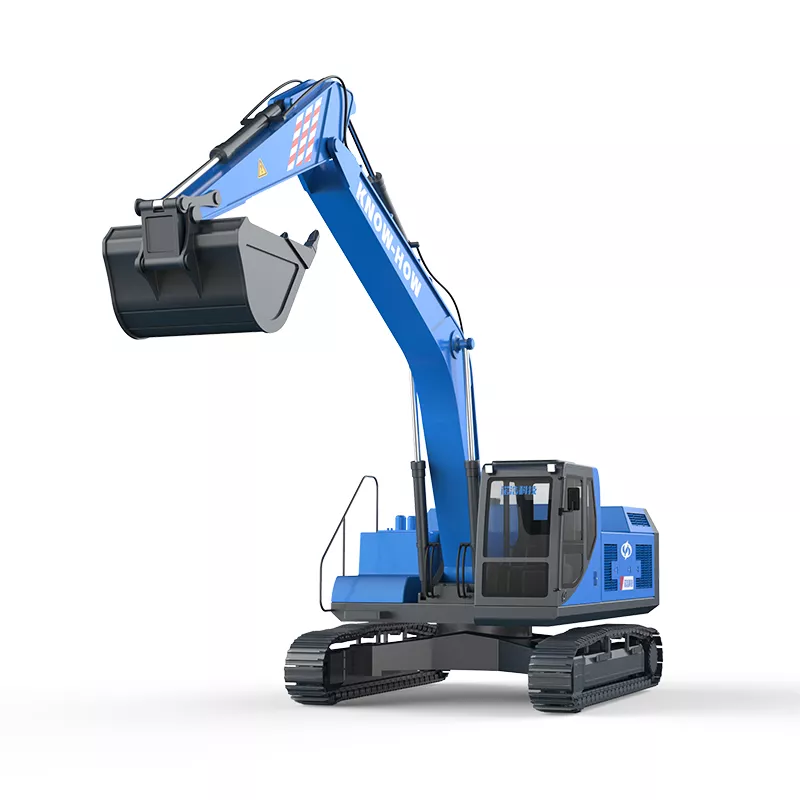

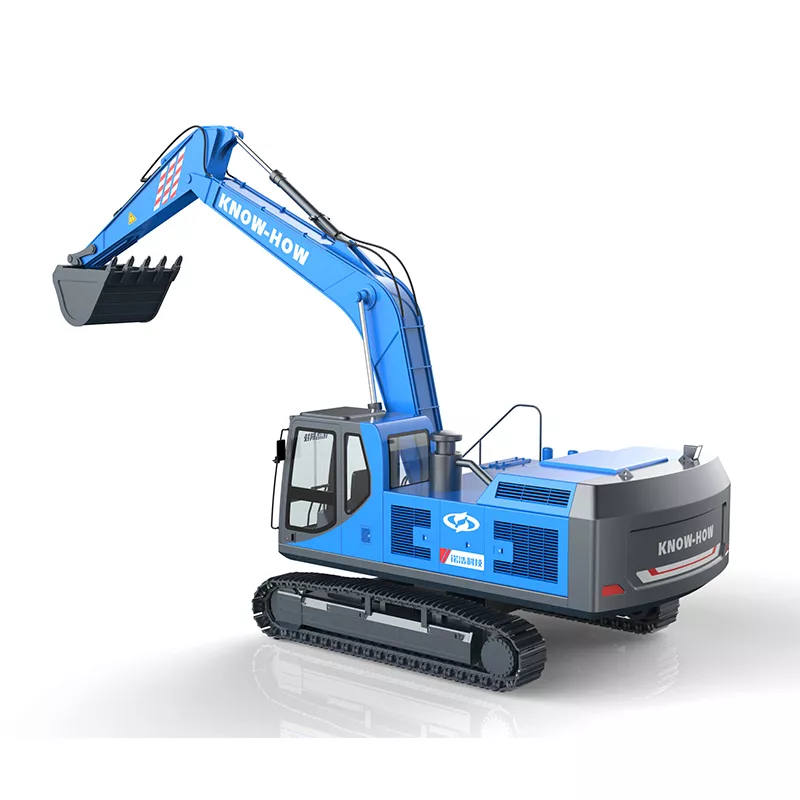

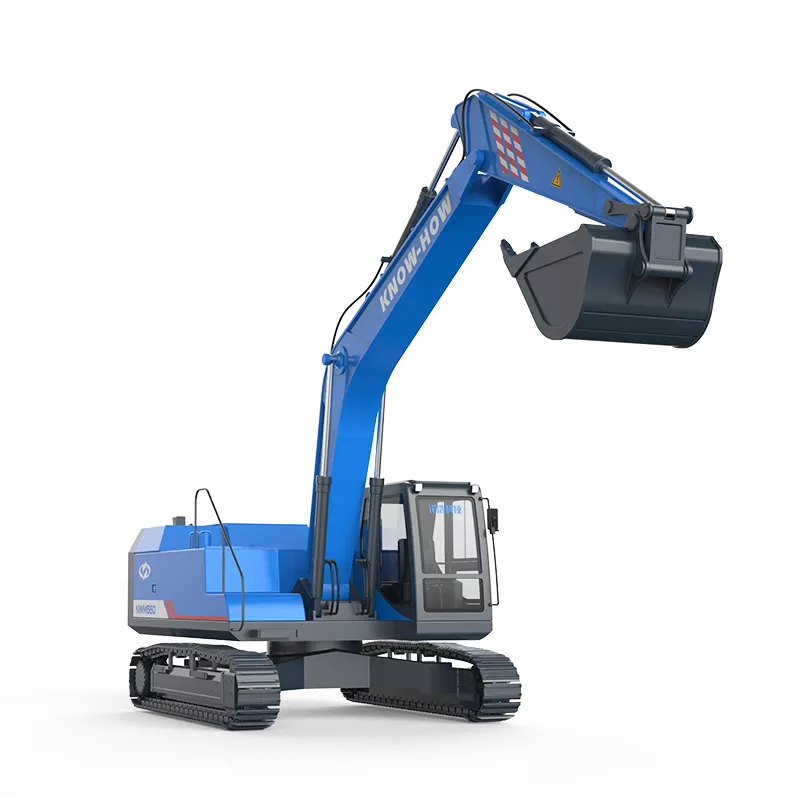

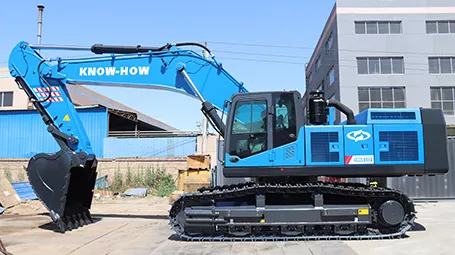

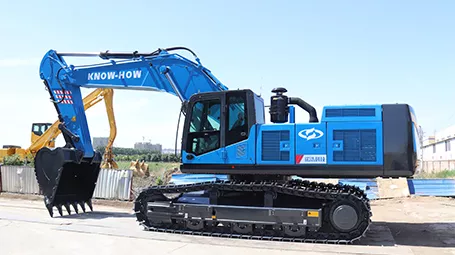

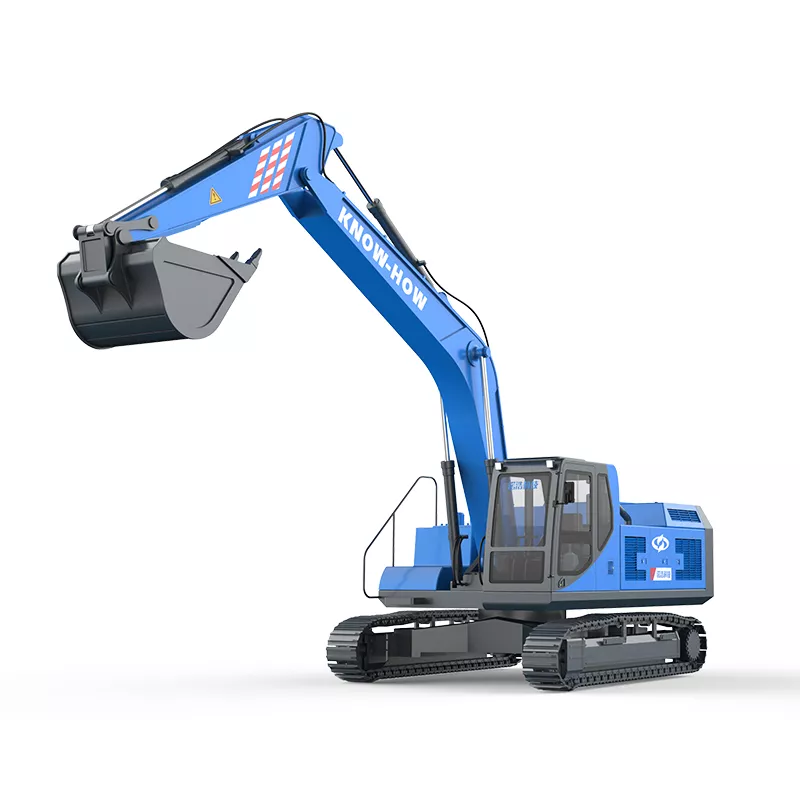

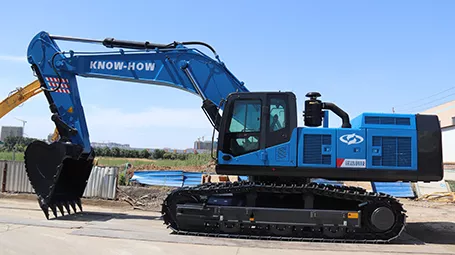

| Diesel Excavator NWM560F | ||
| Vehicle Spec. | Unit | NWM560F |
| Vehicle Weight | KG | 51500 |
| Bucket Capacity | m³ | 2.8-3.6 |
| Engine Type | / | ISUZU 6WG1 |
| Rated Power | Kw/R/Min | 300/1800 |
| Fuel Tank Capacity | L | 650 |
| Walk Speed | km/h | 4.8/3.0 |
| Turning Circle Speed | r/min | 8.6 |
| Max Gradeability | Degree | 70 |
| Bucket Digging Power | KN | 298 |
| Bucket Rod length | mm | 2550 |
| Swing Arm Length | mm | 6520 |
| Ground Pressure | KPa | 86 |
| Hydraulic tank Volume | L | 335 |
| A-Total Length | mm | 11600 |
| B-Total Width | mm | 3340/3900 |
| C-Total Height(Swing Arm) | mm | 3640 |
| D-Total Height(Cabin) | mm | 3280 |
| E-Ground Clearance | mm | 1300 |
| F-Ground Cleance | mm | 720 |
| G-Rear Tail Turning Radius | mm | 3845 |
| H-Crawler on ground length | mm | 4360 |
| J-Crawler Total Length | mm | 5390 |
| K-Rail Distance | mm | 2740 |
| L-Crawler Width | mm | 3340 |
| M-Crawler Plate Width | mm | 600 |
| N-Cabin Height | mm | 3045 |
