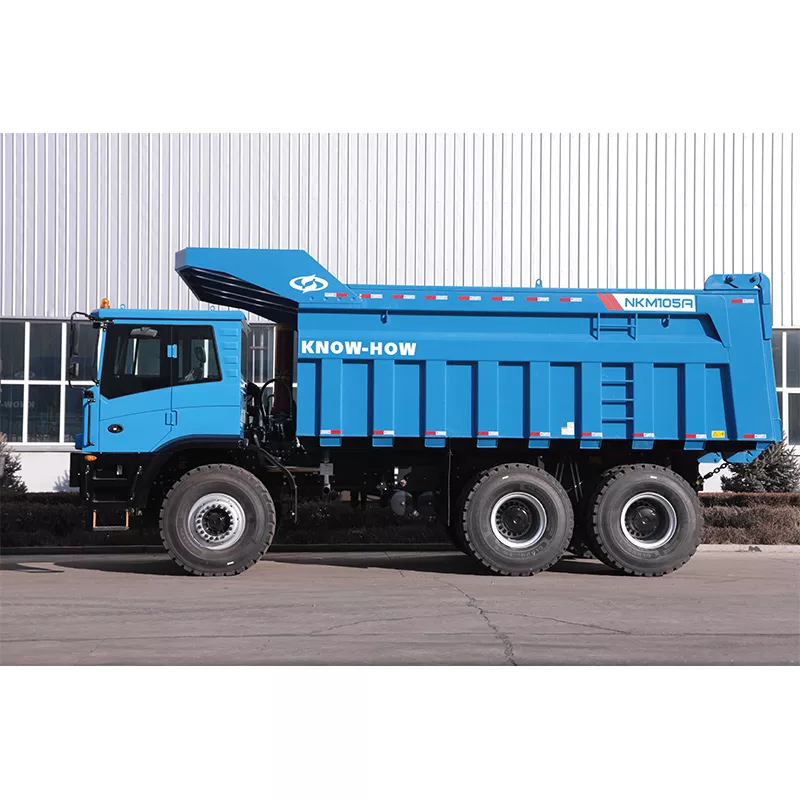

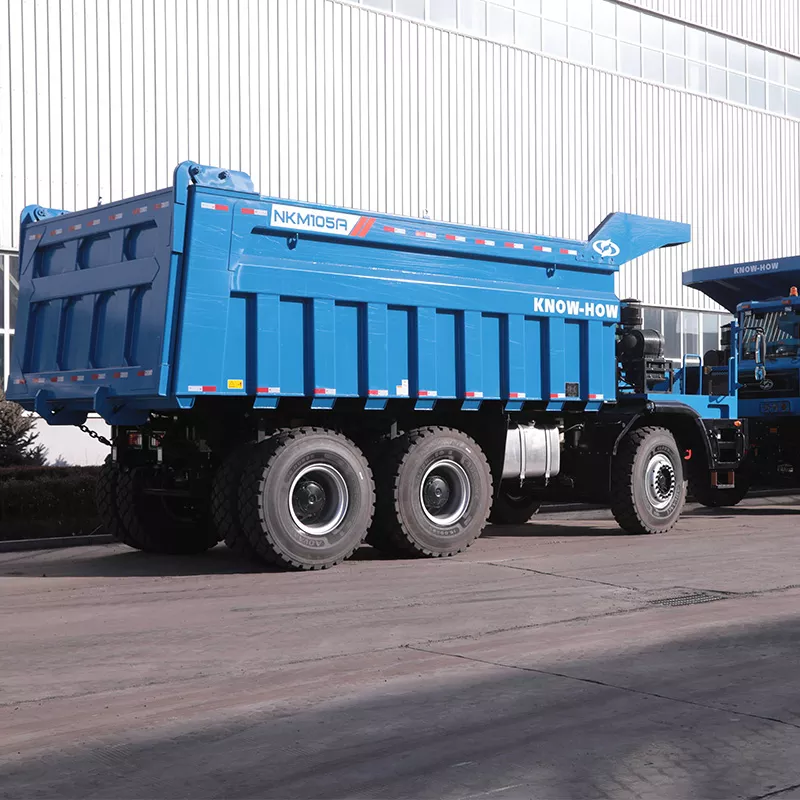

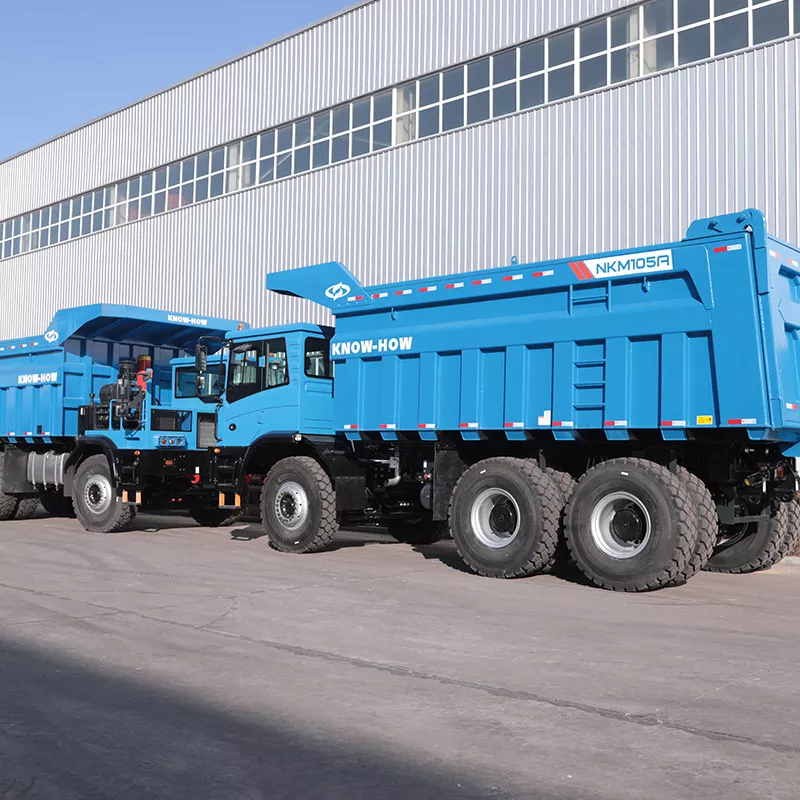

| Diesel Dump truck | ||
| Vehicle Spec. | Unit | NKM105H |
| Total Vehicle Weight | KG | 105000 |
| Rated Loading Weight | KG | 70000 |
| Tank Cubic Volume | Cubic Meter | 38(Flat),42(Stack) |
| Axle Loading Front/Middle/Rear | t | 24+40+40 |
| Engine Type/HorsePower | Hp | YC6K520-GT30(520hp) |
| Gearbox type | / | Faust 8DS260/MT(Mechanical Transmission) |
| Steering system | / | Full hydraulic steering |

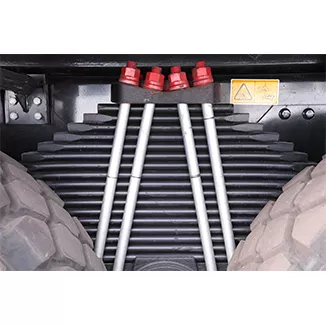

| Suspension System(Front/rear) | / | Hydro-pneumatic spring/balance shaft general hanging |
| Braket System | / | Welded rigid tank frame /480x140 |
| Vehicle Dimension | mm | 9600*3680*4300 |
| Driven Type | / | 6*4 |
| Max Speed | km/h | 43 |
| Min Turning Radius | m | 12 |
| Vehicle Length | mm | 9600 |
| Front Middle Axle wheel base | mm | 4000 |
| Middle Rear Axle Wheel Base | mm | 1750 |
| Vehicle Height | mm | 4300 |
| Vehicle Width | mm | 3680 |
| Rear Wheel distance | mm | 2699 |
